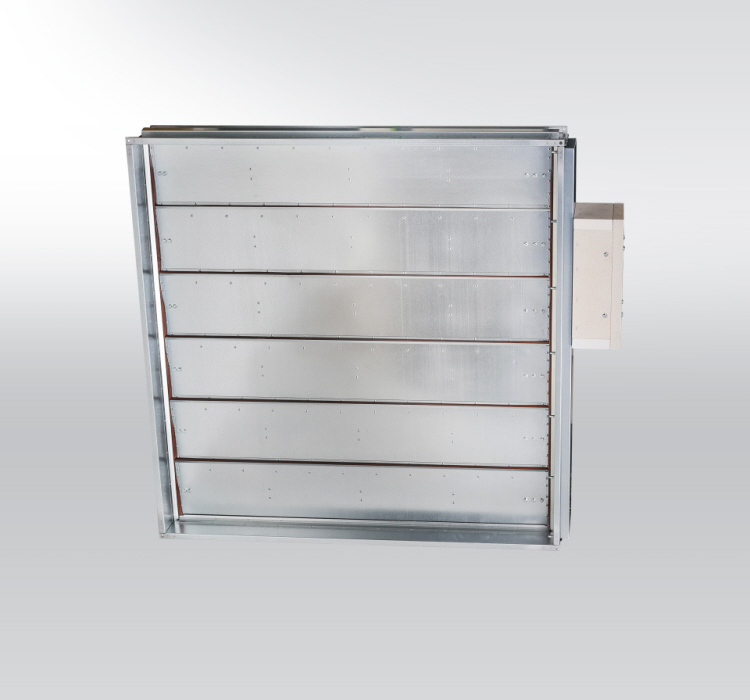

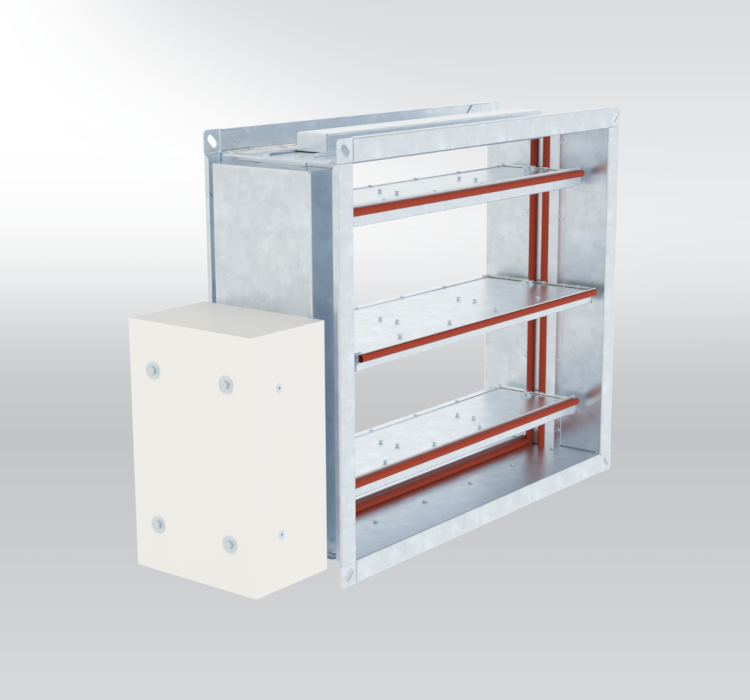

SEDS-L – Single comparement smoke control damper allows usage in smoke extraction ducting systems. Suitable for heat and smoke extraction from one comparement.
Characteristics
- Square dampers from 200 × 200 mm to 1200 x 1200 mm
- Certified acc. to BS EN 12101-8
- Tested in accordance with BS EN 1366-10
- Cycling test in class Cmod acc. to BS EN 12101-8
- Damper actuating by electrical actuator
- External Casing leakage class ATC 4, Internal leakage class 3 acc. to BS EN 1751
- For installation in vertical or horizontal position of blade
- Classified acc. to BS EN 13501-4
- ES 120/600, activation AA/MA
- Max. air speed in the system of 12 m/s, allowed pressure up to 500 Pa, or underpressure up to - 1500 Pa
