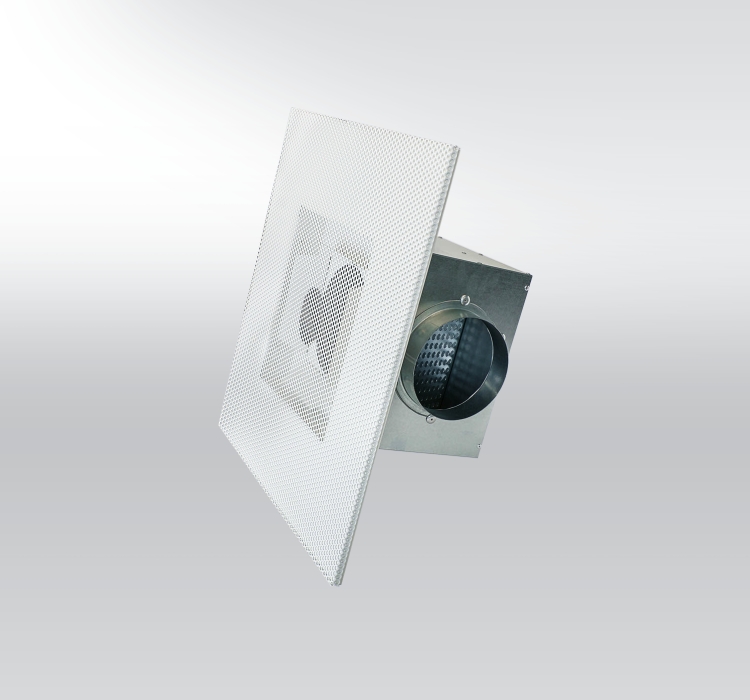

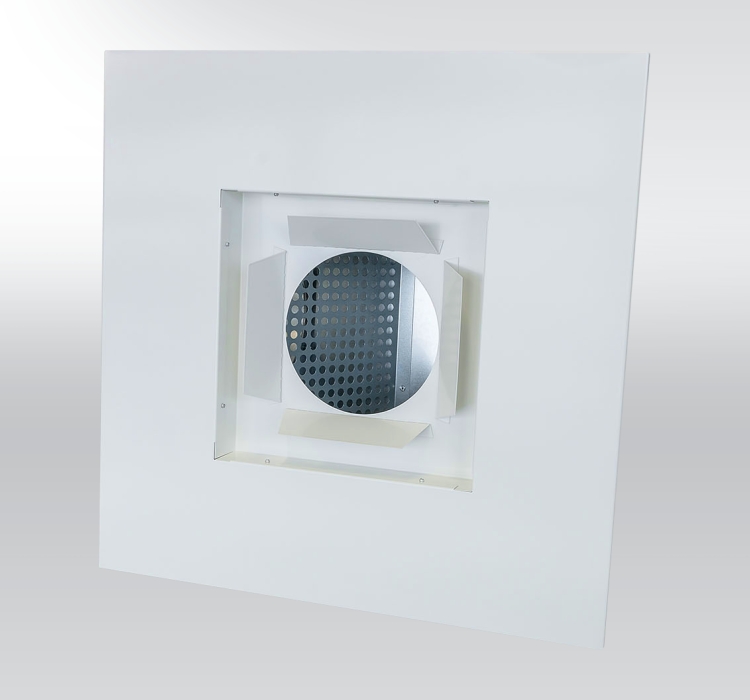

DVCMPerforated air diffuser

DVCM – Perforated air diffuser for air supply or air exhaust, with excellent out-look when installing into suspended ceiling with square gypsum sound attenuating cassettes. Duct air inlet/exhaust on the plenum box can be installed from the site or from the top. Plenum box has option to be equipped with regulating flap and perforated air diffusing plate.



  • Installation into ceiling or suspended below ceiling
  • For offices, cinemas, shopping centers, etc.
  • Airflow volume from 40 to 950 m3/h
  • Box dimension: 250, 300, 400, 500, 550
  • Front plate dimension: 300, 400, 500, 600, 625
  • Installation height from 2,6 to 4,0 m
  • For cooling
  • Galvanized plenum box
  • Front panel coated according RAL

Certifications and declaration
