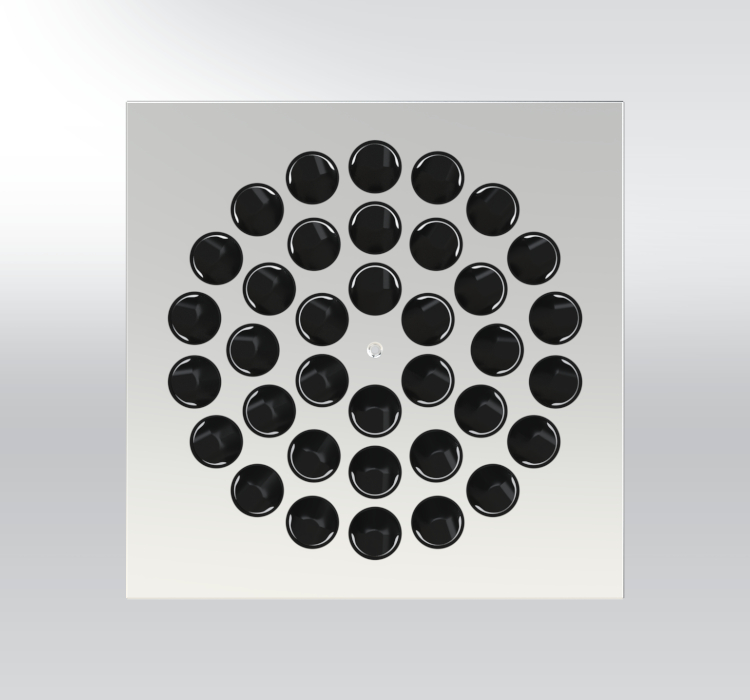

NDM – The diffuser functions as final air element of ventilation system for air supply and air exhaust. It consists of a front plate equipped with a set of individually adjustable plastic nozzles. By turning the nozzles, any direction of air flow can be created according to the specific building layout/ in the room. The diffusers are suitable for rooms up to 4 m high. The difference between the supply air temperature and the room temperature can be up to 12°C.
Characteristics
- installation in the ceiling or suspended ceiling
- design of the front plate
- flow rate from 50 to 700 m3/h

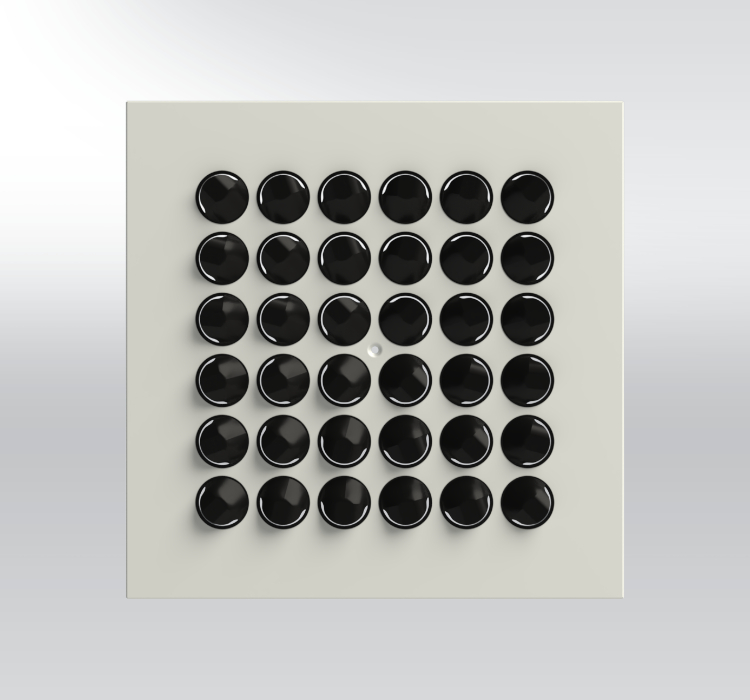

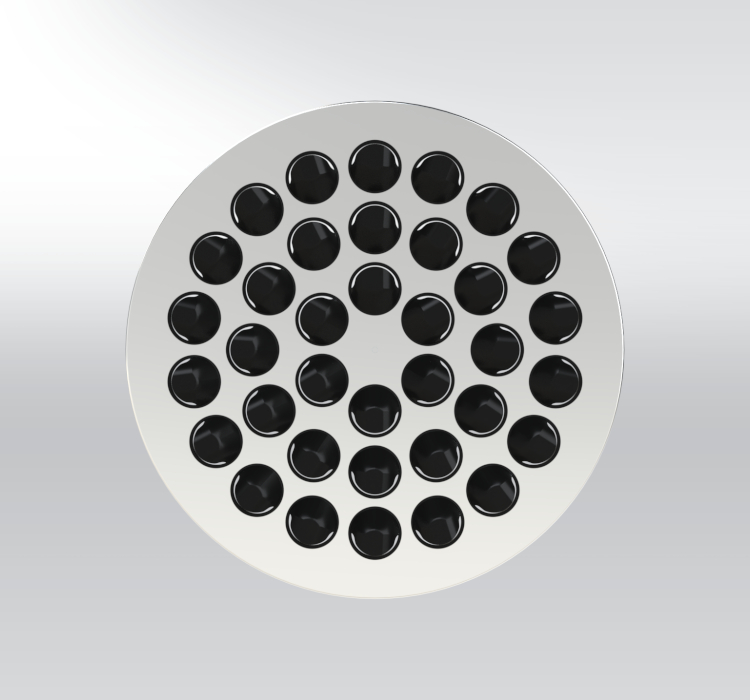

- sizes in mm: 300, 400, 500, 600, 625, square and circular nozzle array
- adjustable flow direction, nozzles can be rotated 360°
- low sound level
- can be used for heating, cooling and isotherm
- can be used together with the UNIBOX or EKOBOX connection box
- front plate painted according to RAL
